Stylize effects

Pixelate, Tile, Dither, Posterize, Datamosh blocks, Glass, Pixel sort, Metaball, ASCII, Halftone, Engraving, CRT screen, VHS, Film grain, Glitch.

The fifteen effects in the Stylize group of the catalog, in the order the catalog lists them. Each entry gives the parameters as the card shows them, with their range and default; parameters behind ▸ Advanced are in a second table. Effects with a Speed row also have a clock — Timeline / Free run / Static — on The effect stack.

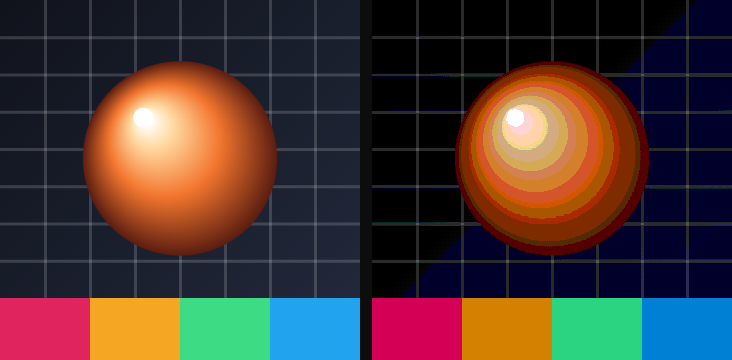

01Posterize

Cuts the picture down to a handful of brightness steps.

Use it for: a silk-screen look, flattening a photo behind type, a comic panel.

ParameterRange · defaultWhat it changes
Levels2 – 32 · 6How many brightness steps remain
Before / after: Posterize on the sample image

02Dither

Reduces the palette and hides the banding with a grain of mixed pixels.

Use it for: a Game Boy still, print that only has a few inks, softening Posterize.

ParameterRange · defaultWhat it changes
Colors2 – 32 · 4How many colors the result may use
Strength0 – 2 · 1How hard the dither pattern is applied
Scale0.25 – 8 · 1Size of the dither dots

Advanced

ParameterRange · defaultWhat it changes
Mix0 – 1 · 1Blend between the original and the full effect

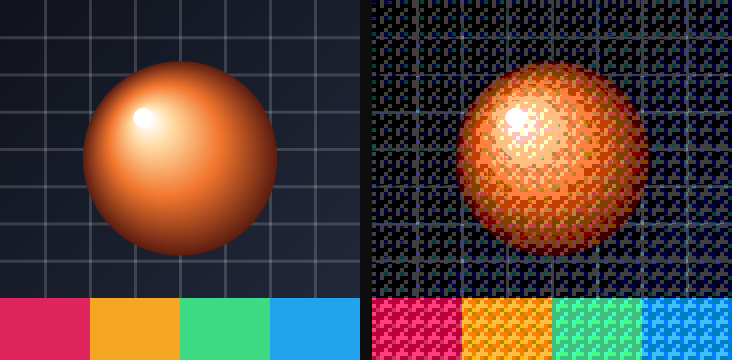

Before / after: Dither on the sample image

03Pixelate

Replaces the picture with a grid of large square pixels.

Use it for: a mosaic, a censorship block, an 8-bit still.

ParameterRange · defaultWhat it changes
Pixel size1 – 200 · 16Width of each square, in pixels

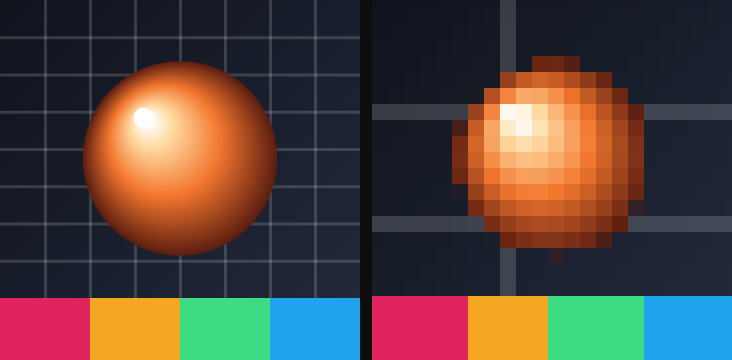

Before / after: Pixelate on the sample image

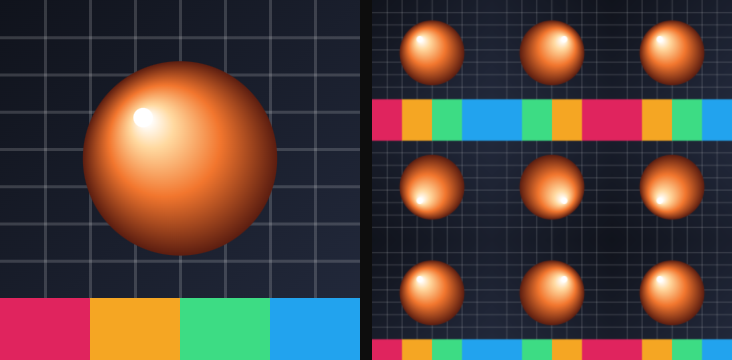

04Tile

Repeats the whole picture in a grid.

Use it for: a pattern fill, a contact sheet, a wallpaper behind a card.

ParameterRange · defaultWhat it changes
Count1 – 32 · 3Tiles along each side
Before / after: Tile on the sample image

05Halftone

Prints the picture as dots, like newsprint.

Use it for: a newspaper photo, a pop-art panel, a cheap flyer.

ParameterRange · defaultWhat it changes
Frequency4 – 200 · 40Dots per layer; higher is finer
Angleany angle · 45°Screen angle of the dots
Softness0.01 – 0.6 · 0.15How hard each dot's edge is

Advanced

ParameterRange · defaultWhat it changes
Mix0 – 1 · 1Blend between the original and the full effect

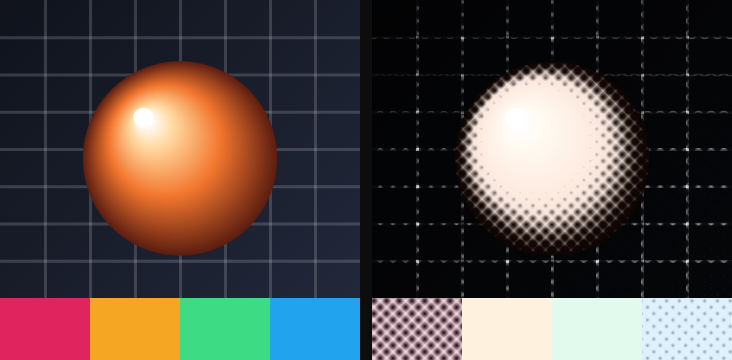

Before / after: Halftone on the sample image

06Engraving

Draws the picture as parallel ink lines.

Use it for: a banknote, a woodcut, a stamp.

ParameterRange · defaultWhat it changes
Line density10 – 600 · 120Lines across the layer
Angleany angle · 45°Direction of the hatch
Thickness−0.5 – 0.9 · 0.1How fat each line is

Advanced

ParameterRange · defaultWhat it changes
Wave0 – 10 · 0Wobble along each line
Inkcolor · #101018Color of the lines

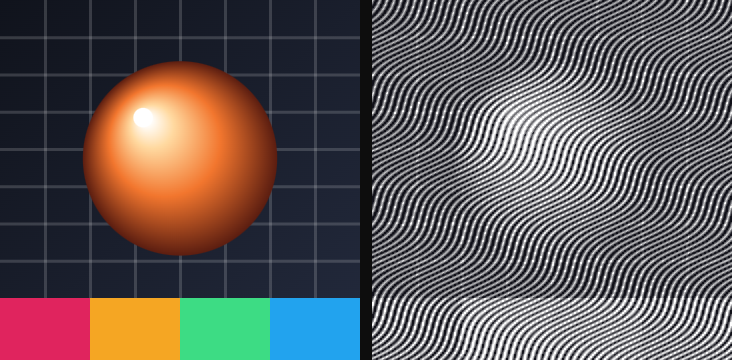

Before / after: Engraving on the sample image

07CRT screen

Scanlines, a curved glass, and a little chromatic split. Has a clock.

Use it for: an old monitor, a terminal, a music video frame.

ParameterRange · defaultWhat it changes
Scanlines0 – 1 · 0.6Strength of the horizontal lines
Curvature0 – 1 · 0.15How much the glass bows
Chromatic0 – 0.1 · 0.01Red/blue split at the edges
Speed0 – 5 · 0.5Cycles per second of the rolling bars

Advanced

ParameterRange · defaultWhat it changes
Vignette0 – 1 · 0.3Darkening in the corners
Mix0 – 1 · 1Blend between the original and the full effect

Motion: Timeline / Free run / Static.

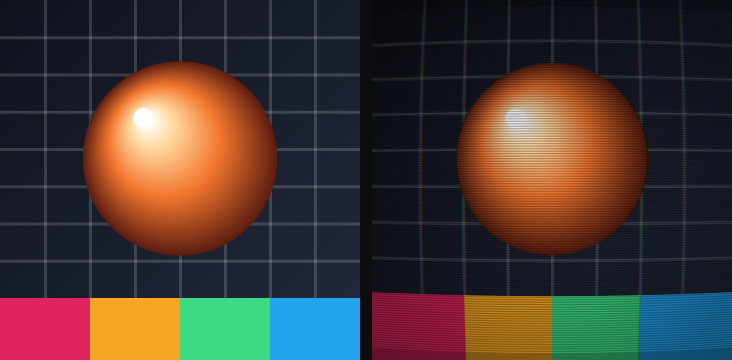

Before / after: CRT screen on the sample image

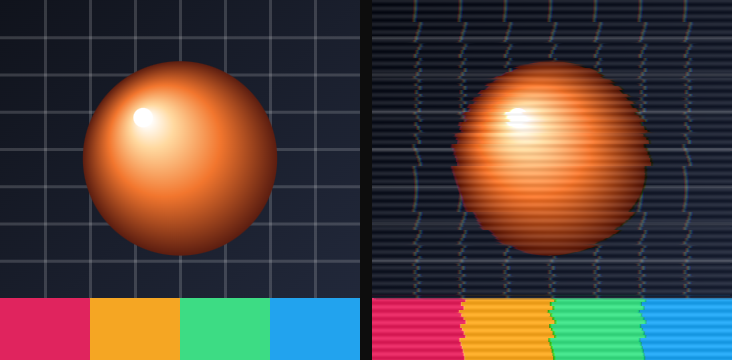

08VHS

Tracking noise, soft chroma and a little vertical shake. Has a clock.

Use it for: a tape that has been copied too many times, a found-footage plate.

ParameterRange · defaultWhat it changes
Amount0 – 4 · 1How heavy the tape look is
Speed0 – 5 · 0.5Cycles per second

Advanced

ParameterRange · defaultWhat it changes
Mix0 – 1 · 1Blend between the original and the full effect

Motion: Timeline / Free run / Static.

Before / after: VHS on the sample image

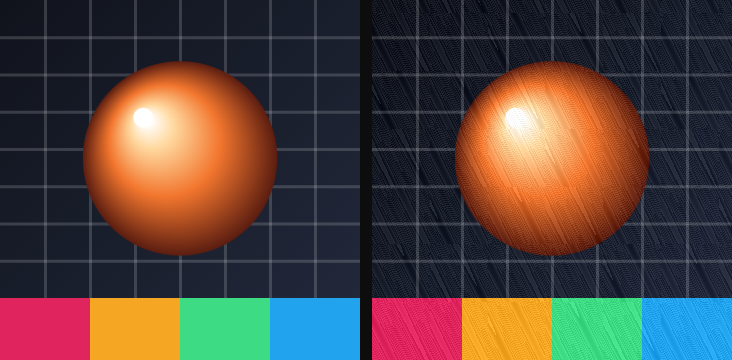

09Film grain

A fine, moving grain over the picture. Has a clock.

Use it for: sitting a digital still next to real footage, taking the plastic off a 3D render.

ParameterRange · defaultWhat it changes
Amount0 – 1 · 0.12How visible the grain is
Speed0 – 5 · 0.5Cycles per second; at 0 the grain freezes

Advanced

ParameterRange · defaultWhat it changes
Mix0 – 1 · 1Blend between the original and the full effect

Motion: Timeline / Free run / Static.

Before / after: Film grain on the sample image

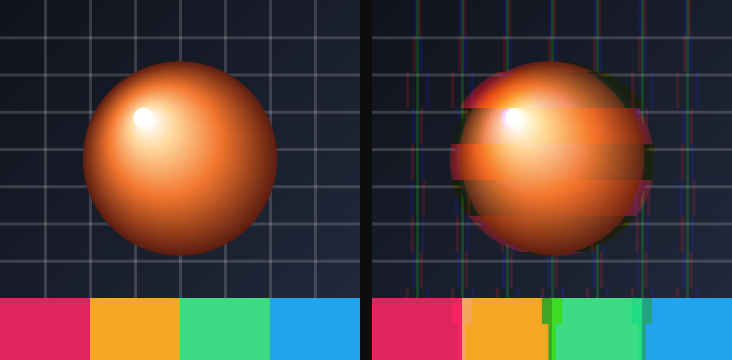

10Glitch

Horizontal slices that jump and split. Has a clock.

Use it for: a broken title, a hacked terminal, a beat hit.

ParameterRange · defaultWhat it changes
Amount0 – 0.3 · 0.03How far the slices jump
Rows2 – 80 · 10How many slices
Speed0 – 5 · 0.5Cycles per second

Advanced

ParameterRange · defaultWhat it changes
Mix0 – 1 · 1Blend between the original and the full effect

Motion: Timeline / Free run / Static.

Before / after: Glitch on the sample image

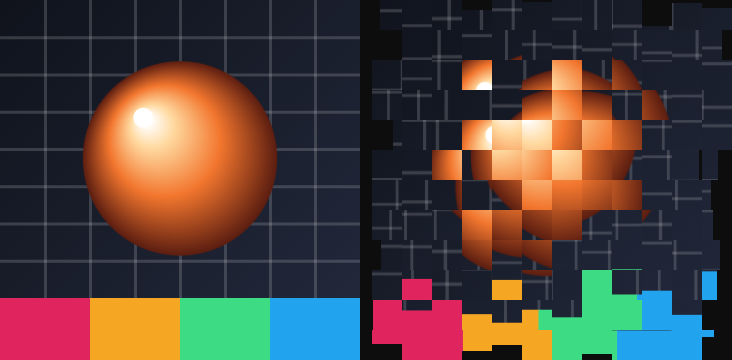

11Datamosh blocks

The picture breaks into shifting blocks, like a video that lost its keyframes. Has a clock.

Use it for: a codec error, a music-video smash, a transition that never quite lands.

ParameterRange · defaultWhat it changes
Cells2 – 80 · 12How many blocks across
Shift0 – 5 · 1How far blocks slide
Stretch0 – 3 · 0.5How much blocks smear
Speed0 – 5 · 0.5Cycles per second

Advanced

ParameterRange · defaultWhat it changes
Seed0 – 100 · 0Which random pattern; change it for a different break
Mix0 – 1 · 1Blend between the original and the full effect

Motion: Timeline / Free run / Static.

Before / after: Datamosh blocks on the sample image

12Glass

Refracts whatever sits behind the layer, with a highlight and an optional frost.

Use it for: a frosted card, a lens over a photo, a liquid blob.

Presets: Lens, Liquid, Frosted, Thin.

ParameterRange · defaultWhat it changes
Refraction0 – 1 · 0.8How strongly the glass bends the backdrop
Depth0 – 1 · 0.5Apparent thickness
Dispersion0 – 1 · 0.3Rainbow fringe at the edges
Frost0 – 1 · 0Soft blur of the glass itself
Light angleany angle · −45°Direction the highlight comes from
Light0 – 1 · 0.3Strength of that highlight

Advanced

ParameterRange · defaultWhat it changes
Tintcolor · #ffffffColor mixed into the glass
Tint amount0 – 1 · 0How much of that tint
Mix0 – 1 · 1Blend between the original and the full effect
Glass needs something behind it. On a layer with no backdrop it has nothing to bend — put it on an Effect Layer, or over a filled group. See Effects on a layer vs the Effect Layer.

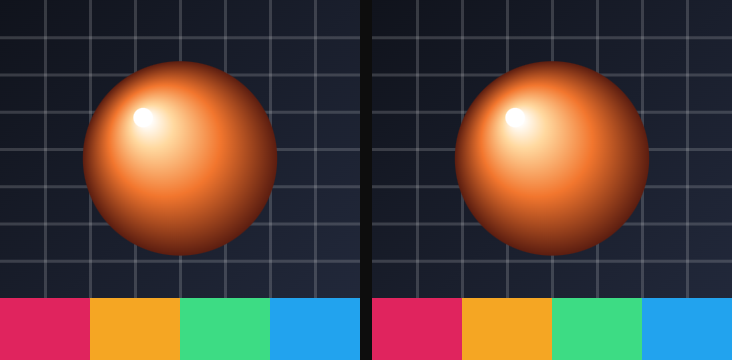

Before / after: Glass on the sample image

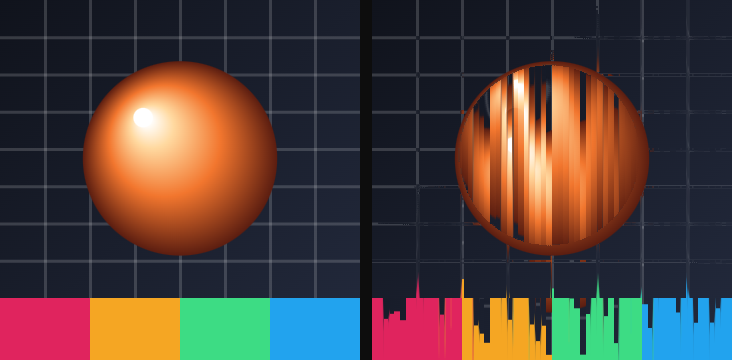

13Pixel sort

Sorts runs of pixels by brightness, so the picture streaks along its own values. Has a clock.

Use it for: a databending still, a sky that turns into rain, a portrait that melts.

ParameterRange · defaultWhat it changes
Threshold0 – 1 · 0.25How bright a pixel must be to join a run
Amount0 – 1 · 0.25How far the sort travels
Speed0 – 5 · 0.5Cycles per second

Advanced

ParameterRange · defaultWhat it changes
Mix0 – 1 · 1Blend between the original and the full effect

Motion: Timeline / Free run / Static.

Before / after: Pixel sort on the sample image

14Metaball

Soft blobs that melt into each other wherever the picture is bright.

Use it for: lava, a liquid logo, merging dots into one shape.

ParameterRange · defaultWhat it changes
Radius0 – 60 · 14How far each blob reaches
Threshold0.05 – 2 · 0.5How much brightness it takes to form a blob

Advanced

ParameterRange · defaultWhat it changes
Smoothing0 – 8 · 2How soft the blob edges are

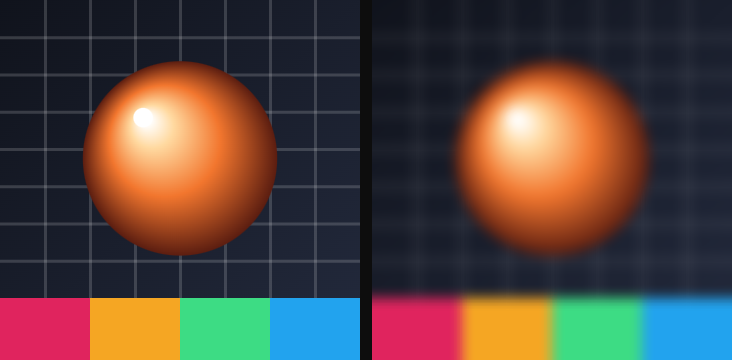

Before / after: Metaball on the sample image

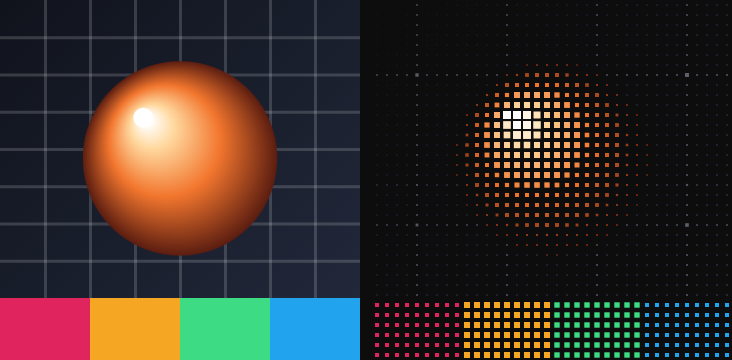

15ASCII

Rebuilds the picture from a grid of glyphs — blocks, circles, letters.

Use it for: a terminal portrait, a brutalist title, a print that only has type.

ParameterRange · defaultWhat it changes
ShapeBlocks / Circles / Lines / Diagonal / Cross / Diamond / Halftone / Chars · CirclesWhat sits in each cell
Cell size4 – 64 · 10Size of each glyph cell, in pixels
Contrast−1 – 3 · 0Extra contrast before the glyphs are picked
Keep coloron / off · onOn keeps the source color; off uses Ink
Inkcolor · #d7e1e9Glyph color when Keep color is off

Advanced

ParameterRange · defaultWhat it changes
Brightness−1 – 1 · 0Lift or sink before glyphs are picked
Gamma0.1 – 4 · 1Midtone curve before glyphs are picked
Spacing0 – 0.4 · 0Gap between cells
Glyph count2 – 10 · 10How many characters the Chars set uses
Inverton / off · offSwaps light and dark before picking glyphs
Mix0 – 1 · 1Blend between the original and the full effect
Before / after: ASCII on the sample image
Checked against the tool on 2026-09-30.
